Mk 1/2 Golf lay flat rear wiper.
I have only ever carried this out on a Mk 2 but apparently it is the same for a Mk 1.
1/ Remove wiper arm & plastic cover from inside the hatch to expose the wiper motor & mechanism

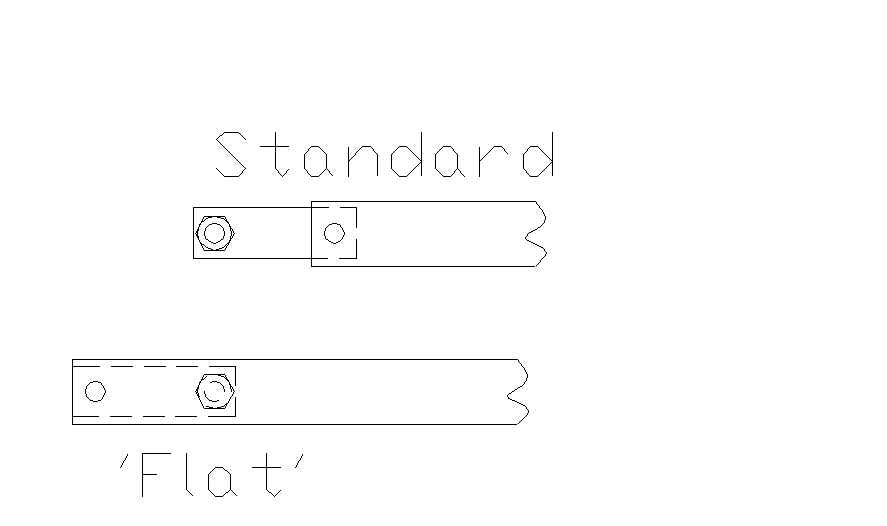

2/ Loosen nut on end of motor shaft & release linkage arm from the shaft.
3/ Rotate linkage arm 180 degrees & press back onto shaft.
4/ Re-tighten nut ( this is the most tricky part as the nut is obscured by the linkage ).
5/ Operate wiper a few times to ensure the linkage returns to new position.
6/ Re-fit plastic cover & wiper arm ( in flat position !) adjust wiper arm as necessary. The wiper arm may need bending slightly to allow the wiper blade to sit parallel to the window rubber.
